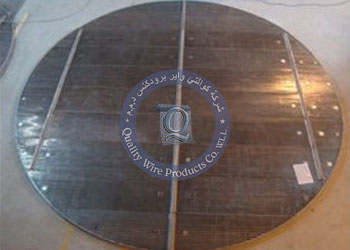

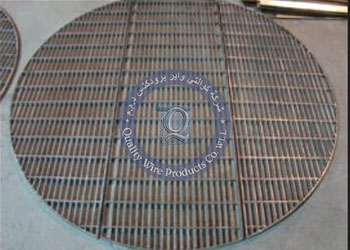

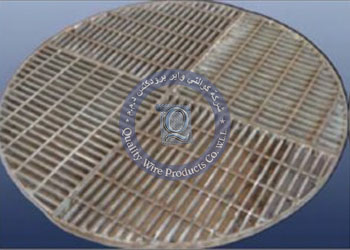

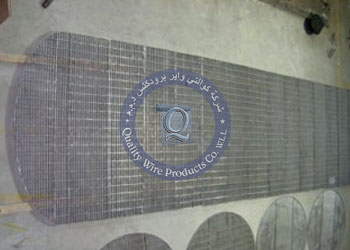

Steel Gratings

Steel Gratings

Quality Wire Products Co W.L.L. offers all types of steel gratings and stair treads, tailor made to exact requirement for all industrial purposes and facilities in all fields such as petrochemical plants, power plants, steel plants, refineries, cement factories, steel mills, high rising towers etc., and also for commercial purposes like drainage pit covers, side trench covers, walkways, heavy duty washing platforms, multi storing system, fencing etc.Welded steel bar grating is the most popular of all grating type due to its strength, cost effective production and easy for installation. We offer gratings in stainless steel and all other high end alloys like Monel, with different openings and cross bar and bearing bar typically to suit the individual requirement of the customers.Quality Wire Products Co. W.L.L offers gratings suitable for pressure vessel industry and special process and engineering calculations are done based on the customer requirements and gratings can be designed based on process information. Gratings are available in Mild Steel, Hot Dip Galvanized, Stainless Steel all grades, Monel and otherspecial alloys.

Standard Specifications for Steel Gratings in Mild Steel and Galvanized
Bar Size D x W (mm) Bearing Bar Spacing Cross Bar Spacing Bar Size D x W (mm) Dearing Bar Spacing Cross Bar Spacing
20 x 3 30 100 55 x 4/5 30 100
25 x 3 30 100 60 x 4/5 30 100
30 x 3 30 100 20 x 4/5 30 50
35 x 3 30 100 25 x 4/5 30 50
20 x 3 30 100 55 x 4/5 30 50
20 x 4/5 30 100 30 x 4/5 30 50
25 x 4/5 30 100 35 x 4/5 30 50
30 x 4/5 30 100 50 x 4/5 30 50
35 x 4/5 30 100 50 x 4/5 30 50
50 x 4/5 30 100 55 x 4/5 30 50
50 x 4/5 30 100 60 x 4/5 30 50
Custom Made Grating
Bar Size D x W (mm) Bearing Bar Spacing Cross Bar Spacing
10 to 60 X 2 to 6 30 – 100 25 – 100
